Yesterday, NVIDIA made public two new OpenGL extensions named NV_shader_buffer_load and NV_vertex_buffer_unified_memory, these new extensions allow to use OpenGL in a totally new way they called Bindless Graphics. With Bindless Graphics you can manipulate Buffer Objects directly using their GPU global memory addresses and control the residency of these objects from applications. It allows to remove the bottleneck coming from binding objects before being able to use them, that force the driver to fetch all objects states before being able to use of modify them.

The  NV_shader_buffer_load extension provides a mechanism to bind buffer objects to the context in such a way that they can be accessed by reading from a flat, 64-bit GPU address space directly from any shader stage and to query GPU addresses of buffer objects at the API level. The intent is that applications can avoid re-binding buffer objects or updating constants between each Draw call and instead simply use a VertexAttrib (or TexCoord, or InstanceID, or...) to "point" to the new object's state.

The NV_vertex_buffer_unified_memory extension provides a mechanism to specify vertex attributes and element array locations using these GPU addresses. Binding vertex buffers is one of the most frequent and expensive operations in many GL applications, due to the cost of chasing pointers and binding objects. With this extension, application can specify vertex attributes state direcly using VBO adresses that alleviates the overhead of object binds and driver memory management.

NVIDIA provides a small bindless graphics tutorial, with a presentation of the new features.

That seems very useful, but what scare me a little bit is that each time you provide the developer with lower level access like this, you reduce a lot the potential of automatic driver optimizations and in particular, I wonder how this mechanism interact with NVIDIA SLI mode that provide automatic scaling of OpenGL applications among multiple GPU. This mode duplicate data on each GPU and broadcast drawing command to all the GPU to allow them to produce differents parts of a frame and compose them before display. Using these extensions, the same address space has to be maintained on all GPU involved in SLI drawing, that seems to be very difficult especially in case of etherogenous SLI configurations.

Just would like to give small tips I found to help working with CUDA under visual studio.

First, syntax highlighting for .cu files can be enabled with these few steps:

  1. Copy the content of the “usertype.dat” file provided by nvidia (NVIDIA CUDA SDK\doc\syntax_highlighting\visual_studio_8) into your “Microsoft Visual Studio 8\Common7\IDE” folder from your program files folder.

  2. Open Visual Studio and Take Tools -> Options. Under Text Editor -> File Extension tab, specify the extension “cu” as a new type.

Visual Studio rely on a feature named Intellisense to provide functions and variables names completion, definitions lookup and all these kind of features. To get intelligence working with .cu files, yo have to modify a windows registry key: Add c and cuh extensions to NCB Default C/C++ Extensions key under "HKEY_CURRENT_USER\Software\Microsoft\VisualStudio\9.0\Languages\Language Services\C/C++" path. (Thanks to http://www.wizardsofeast.com/?p=378 for the tip)

For those using Visual Assist X, you can do the following. First, find the Visual Assist X install directory: (X:\Program Files\Visual Assist X\AutoText\latest) and then make a copy of Cpp.tpl and rename it to Cu.tpl. Second, Open and close Visual Studio (this initializes Visual Assist X parameters by creating some folders/variables in the Registry ). Third, open regedit and go to: "HKEY_CURRENT_USER\Software\Whole Tomato\Visual Assist X\VANet9" and add ".cu;" to the ExtSource key and add ".cuh;" to the ExtHeader key. (Thanks to ciberxtrem for the tip)

Finally, build rules allowing to easily compile .cu files without having to write the rules manually can be integrated installing this little wizard: http://forums.nvidia.com/index.php?showtopic=65111. More details on CUDA build rules can be found on this website : http://sarathc.wordpress.com/2008/09/26/how-to-integrate-cuda-with-visual-c/.

Last week, intel gives two talks about Larrabee ISA called Larrabee New instructions (LRBNi).

The most significant thing to note is that Larrabee will expose a vector assembly, very similar to SSE instructions, but operating on 16 components vectors instead of 4. To program this, they will provide C intrinsics whose names that look... really weird !

C++ Larrabee prototype library: http://software.intel.com/en-us/articles/prototype-primitives-guide/

Intel provide headers with x86 implementations of these instructions to allow developers to start using these instructions now. But I can't imagine anybody using this kind of vector intrinsics to program a data parallel architecture. As we have seen with SSE instructions, very few programmers finally used them, and only for very specific algorithm parts. So I think that these intrinsics will be only used  to implement higher level programming layers, like an OpenCL implementation, that is for me a really better and more flexible way to program these architectures.

The scalar model exposed for the G80 through CUDA and the PTX assembly (and that will be exposed by OpenCL) uses scalar operations over scalar registers. In this model,  the underlining SIMD architecture is visible through the notion of warps, inside which programmers know that divergent branches are serialized. Inter-threads communication is exposed through the notion of CTA (Cooperative Threads Array), a group of threads able to communicate through a very fast shared memory. Coalescing rules are given to the programmers to allow him to make best use of the underlining SIMD architecture,  but the model is far more scalable (not restricted to a given vector size) and allows to write codes in a lot more natural way than a vector model.

Even if, for now, Larrabee exposes a vector assembly, where the G80 expose a scalar one, only the programming model vary but the underlining architecture is finally very similar. Each Larrabee core can dual issue instructions to an x86 unit and 16 scalar processors working in SIMD, that is very similar to a G80 Multiprocessor, that can dual issue instructions to a special unit or 8 scalar processor working in SIMD over 4 cycles (providing a 32 wide SIMD). Larrabee exposes 16 wide vectore registers, where the G80 expose scalar ones, that are in facts aligned parts of vector memory bank.

The true difference before the two architecture is that Larrabee will implement the whole graphics pipeline using these general purpose cores (plus dedicated texture unit), where the G80 still has a lot of very optimized units and data paths dedicated to graphics operations connected into a fixed pipeline. The bet Intel is doing is that the flexibility provided by the full programmable pipeline will allow a better load balancing that will compensate the less efficiency of the architecture for graphics operations. The major asset they rely on is a binning rasterisation model, where after the transform stage, triangles are affected by screen tiles locality to the cores where all the rasterisation, the shading and the blending is done. Thanks to this model, they could keep local screen regions per cores in dedicated parts of a global L2 cache, used for inter-cores communications. That should allow efficient programmable blending for instance. But I think that even them don't know if it will really be competitive for consumer graphics !

And even on that point, Larrabee approach is not so different from G80 approach, where triangles are globally rasterized and then fragments are spread among Multiprocessors based on screen tiles (cf. http://www.icare3d.org/GPU/CN08) for fragment shading, the diference is that z-test and blending are done by fix ROP units, connected to the MP via a crossbar (cf. http://www.realworldtech.com/page.cfm?ArticleID=RWT090808195242).

Finally, with these talks, Intel seems to present as a revolutionary new architecture something that  for the major part has been here for more than 2 years now with the G80, coming with a programming model that seems really weird compared to the CUDA model. This is even more weird that Larabee may not be released before Q1 2010, and at this time NVIDIA and ATI will have already released their next generation architectures that may look even more similar to Larrabee. With Larrabee, Intel has been feeding the industry with a lot of promises, like the "it will be x86, so you won't have to do anything particular to use it", that we have always known to be wrong, since by nature the efficiency of a data parallel architecture comes from it's particular programming model. If a proof was needed, I think this ISA is the one.

Intel GDC presentations: http://software.intel.com/en-us/articles/intel-at-gdc/

Larrabee at GDC, PCWATCH review: http://translate.google.fr/translate?u=http%3A%2F%2Fpc.watch.impress.co.jp%2Fdocs%2F2009%2F0330%2Fkaigai498.htm&sl=ja&tl=en&hl=fr&ie=UTF-8

Very good article about Larrabee and LRBNi: http://www.ddj.com/architect/216402188

OpenGL 3.1 specification have been released at GDC 2009 a few days ago. I think this is the first time in ARB history a new version of OpenGL is released so quickly, less than one year after OpenGL 3.0 was released (at siggraph last year).

This new revision promote to the core some remaining G80 features that where not promoted into OpenGL 3.0: Texture Buffer Objects (GL_ARB_texture_buffer_object, one-dimensional array of texels used as texture without filtering, equivalent to CUDA linear textures), Uniform Buffer Objects (GL_ARB_uniform_buffer_object, enables rapid swapping of blocks of uniforms, rapid update and sharing across program objects), Primitive Restart (GL_NV_primitive_restart, restart an executing primitive, exist as a extensin since Geforce 6 I think), Instancing (GL_ARB_draw_instanced), Texture Rectangle (GL_ARB_texture_rectangle). Uniform Buffer Objects has been enhanced quite a lot compared to the original GL_EXT_bindable_uniform, among other things, several buffer can be combined to populate a shader uniform block and a standard cross-platform data storage layout is proposed.

There is also two new "features" that were not available as extensions before. A CopyBuffer API that allows fast copied between buffer objects (VBO/PBO/UBO) that will also useful for sharing buffers with OpenCL. The other feature is a Signed Normalized Textures format that is a new integer texture formats that represent a value in the range [-1.0,1.0].

Geometry shaders (GL_ARB_geometry_shader4) where not promoted and maybe they will never be. The extension is not implemented by ATI and is not used a lot since this feature is usefull only in a few cases (due to implementation performances). Direct state access (GL_EXT_direct_state_access) was neither promoted, it's a very usefull extension that allows to reduce states changes cost, but it's a really new (released with GL3.0) and I did'nt expected it tobe promoted yet.

The deprecation model is a design mechanism introduced in GL 3.0 to allow to remove outdated features and commands. (the reverse of the extension mechanism). Core features are first marked as deprecated, then moved to an ARB extension, then eventually to an EXT or vendor extension, or removed entirely. The OpenGL 3.0 specification marks several features as deprecated, including the venerable glBegin/glEnd mechanism, display lists, matrix and attribute stacks, and the portion of the fixed function pipe subsumed by shaders (lighting, fog, texture mapping, and texture coordinate generation).

About deprecation, the specification is available in two formats, one with deprecated features (http://www.opengl.org/registry/doc/glspec31undep.20090324.pdf) and one with only "pure" GL 3.1 features (http://www.opengl.org/registry/doc/glspec31.20090324.pdf). An extension called ARB_compatibility has been introduce. If supported by an implementation, this extensien ensure that all deprecated features are available. This mechnism allows not to break the compatibility for old GL applications, keeping every features in the driver, while cleaning the API and providing new high performance paths. It seems to be a good mechanism, more convinient than the initial idea of creating specific contexts. NVIDIA for instance ensure that they will keep all deprecated features in their drivers to answer customers needs (I think mainly CAD customers).

Once again, like for OpenGL 3.0, while ATI declared that they will support GL 3.1, NVIDIA announced a BETA support of GL 3.1 and released drivers: http://developer.nvidia.com/object/opengl_3_driver.html

To conclude, it's good to the the Khronos/ARB remaining so active since the release of OpenGL 3.0, and it's good to see OpenGL evolving in the right direction :-)

Links:

- The announcement: http://www.khronos.org/news/press/releases/khronos-releases-streamlined-opengl-3.1-specification/

- The specifications: http://www.opengl.org/registry/

- More informations: http://www.g-truc.net/#news0152, http://www.skew-matrix.com/bb/viewtopic.php?f=3&t=4

A first post to talk about my work as a PhD student ! I have been doing a PhD for a little bit more than one year now at INRIA Rhone-Alpes in Grenoble, on the rendering and exploration of very (very !) large voxel scenes. I am working more specifically on GPU voxel ray-casting and ray-tracing,  complex GPU data structures and interactive large datasets streaming. I am working in close collaboration with Fabrice Neyret, my PhD supervisor, on that project. Sylvain Lefebvre and Elmar Eisemann are also collaborating on it.

My research webpage can be found here: http://artis.imag.fr/Membres/Cyril.Crassin/

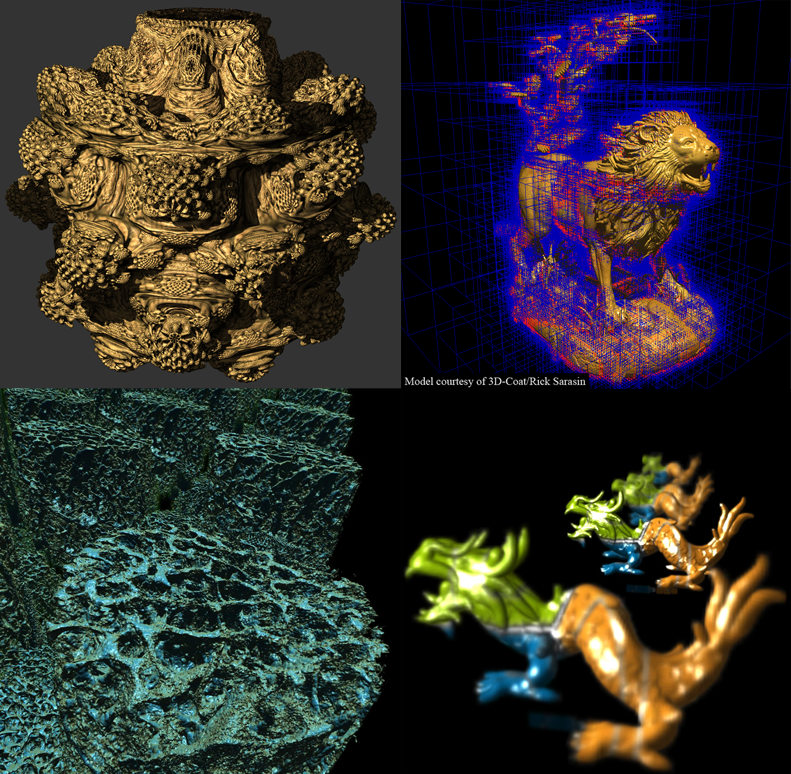

Voxel representations are useful for semi-transparent phenomenas and rendering advanced visual effects such as accurate reflections and refractions. Such representation provide also faster rendering and higher quality (allowing better and easier data filtering) than triangle based representation for very complex meshes (typically leading in one or more triangles per pixels).

The first result of that work have been a research report named Interactive GigaVoxels. We now have a paper accepted at I3D 2009 that is better written, more complete and presents our last work and results. It introduced a rendering system we have named GigaVoxels, that is our realtime voxel engine. GigaVoxels is based on a kind of lightwise sparse voxel octree data structure, a fully GPU voxel ray-caster that provides very high quality and real time rendering and a data streaming strategy based visibility informations provided directly by ray-casting. 3D Mip-Mapping is used to provide very-high filtering quality and the out-of-core algorithm allow virtually unlimited resolution scenes rendering.

GigaVoxels : Ray-Guided Streaming for Efficient and Detailed Voxel Rendering

The first specification of OpenCL (the Open Computing Language) has just been released by khronos. The specification can be downloaded here:

http://www.khronos.org/registry/cl/

OpenCL is a general purpose data-parallel computing API, firstly initiated by apple and then standardized within Khronos. It provides a common hardware abstraction layer to program on data parallel architectures. It is very (very !) close to CUDA and supported by both NVIDIA and AMD, but also INTEL and IBM (Among others). This API don't targets especially GPUs and we should also see CPUs implementations of it, but also maybe Cell implementation, and Larabee implementation (when it will be out) ? NVIDIA is likely to be one of the first to provide OpenCL implementation, since they already have their own now well-tried CUDA API to build on.

In addition to be cross platforms and cross-architectures, one interesting feature of OpenCL is that it have been designed to provide good interoperability with OpenGL, especially for data and textures sharing. It is meant to be the exact competitor to DX11 compute API.

I am at the Siggraph OpenGL 3.0 right now and NVIDIA just gives us the link to their first driver supporting OpenGL 3.0 (with some limitations yet).

The driver can be downloaded here :

http://developer.nvidia.com/object/opengl_3_driver.html

I will do a complete post on OpenGL 3.0 in a few days, but as you may know it is not the OpenGL 3.0 we were waiting for, since the complete rebuild of the API have not been done (the main idea of Long Peak). But it don't seems so bad that we could have been afraid of, a deprecation and profiles mechanism have been introduced and everybody here seems to be confident on its usage and capacity to enhance OpenGL evolution speed.

ATI is also here, and they announced their GL3.0 drivers for Q1 2009... Hum I don't know why I doubt we will get full functional GL3.0 support for them at this date, even if it is already late compared to NVIDIA.

We have been without news of OpenGL 3.0 for nearly 9 months now, a specification was promised for September 2007 at Siggraph last year and then no news after an ARB member reported that the spec was not ready since there was some unresolved issues they had to address. This situation started to becomes really worrying and a lot of speculations have been made on this delay (see opengl.org forum). The most likely thing is that there have been some disagreements inside ARB members that delayed the spec release.

But recently we had two comforting news tending to prove that OpenGL 3.0 is not dead. The first thing is the creation of the OpenGL 3.0 website with announcements for the Siggraph OpenGL BOF :

    - "OpenGL 3.0 Specification Overview"

    - "OpenGL hardware and driver plans - AMD, Intel, NVIDIA"

    - "Developer's perspective on OpenGL 3.0 "

The second think is a leeked picture of an NVidia presentation slide about their future drivers release (codename Big Bang 2, see the news here) where can distinguiche a reference to OpenGL 3.0 support for September. This tend to prove that the specification is now almost done and the IHV are already working on implementation.

I will be at Siggraph this year and I will be at the OpenGL BOF, I hope I will be able to the the final spec here !

    For today GPU generation, we know a lot more about the hardware mechanism than for previous GPU generation, in particular thanks to the window open on this hardware by Cuda. But many hardware details are still hidden to the programmer, in particular mechanisms used for primitives rasterisation and fragments shading. As understanding how fragments are scheduled among the G80 processing units is a critical points for the research we do with Fabrice Neyret as part of my PhD, I wrote a small program allowing to investigate this point.

     We also wrote a document that presents our motivations for this work, the experiments we made yet and the results and answers we get: http://www.icare3d.org/GPU/CN08

    We hope this document will give you useful informations. We don't want it to be closed and we want to make it evolve through new experiments and also thanks to exterior comments you can let at the bottom of this page.
